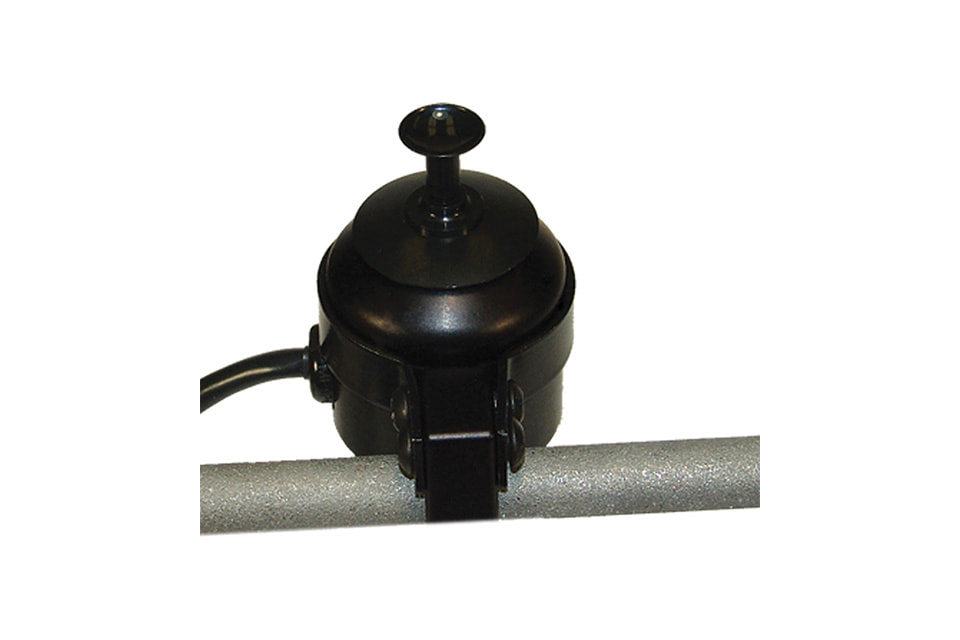

ASL 130 Micro Extremity Control (MEC)

Click red dots to view the features of the ASL 130 Micro Extremity Control (MEC).

Click here to view the ASL 130 Micro Extremity Control (MEC)

image description

MEC Features

  • 18 Grams of force to move
  • 9 Millimeters of range to reach full throw
  • Patented Push down feature for mode change
image description
image description
image description
image description

USER PORT:
Any activation of a switch in the User Port will put the joystick into Bluetooth Mode. This will be indicated by a long beep.

LEFT/RIGHT MOUSE CLICK PORT:
Stereo Connector is for both left and right click. Mono Jack Plug is for left mouse click. Mono Jack default is left click. This switch must be plugged in before chair is powered up or it will not be recognized.

BLUETOOTH PAIRING SWITCH:
Push to start the pairing process.

BLUETOOTH STATUS INDICATOR:
If flashing Bluetooth is not paired. When solid, Bluetooth is paired.
