Products / 100 Series / ASL 108

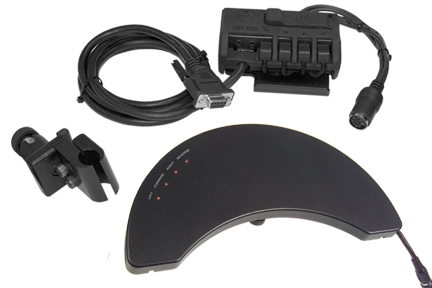

Four Switch Fiber Optic Array

The ASL 108 Four Switch Fiber Optic Array consists of four fiber optic switches that allow the driver to operate a power wheelchair. Simply by covering the corresponding switch the driver can move forward, reverse, left or right. Depending on the position of the 3-4 switch on the front of the ASL 151 Interface the fourth proximity sensor controls reset/mode change (in the 3 position) or reverse (in the 4 position).  Drivers can veer the wheelchair by activating the forward or reverse switch in combination with either the right or left switch. This system generally mounts inside an ASL 601 Full Lap Tray Driving Platform, ASL 603 Mini Tray, ASL 619 Eclipse Tray, Flex Tubing or Fiber Optic Bullets. These switches can be positioned anywhere inside the tray and once positioned a quick disconnect feature allows the tray to be removed with sensors intact. The small size of these switches allows the provider to mount all four within a one inch range. However, these sensors do not require the use of a tray and can be positioned at virtually any available switch site depending on the client’s movement ability. Typical users are individuals with extremely limited movement such as MD, MS, ALS and SMA.

Must Specify Wheelchair Electronics.
Mounting Options Not Included. Requires ASL 151 Interface.

Printer Friendly Version | Ask ASL about Item | Tell A Friend




Mounting Options:

  • ASL 601 ASL 601 Full Lap Tray
  • Straight ASL 603 Mini Tray
  • Mini ASL 619 Eclipse Tray


Fiber Optic Adjustments:

  • Switches and Illumination Box Switches and Illumination Box
  • Adjustments and Settings Adjustments and Settings


All Options Include:

    • MK6i Interface ASL 151MK6i Interface
    • MK6i Interface Back ASL 151MK6i Interface Back

OR

  • PG, Curtis, R-Net, Q-Logic Interface ASL 151PG, Curtis, R-Net, Q-Logic Interface
  • PG Interface Back ASL 151PG Interface Back
