Products / 100 Series / ASL 107

Two Switch Fiber Optic Array

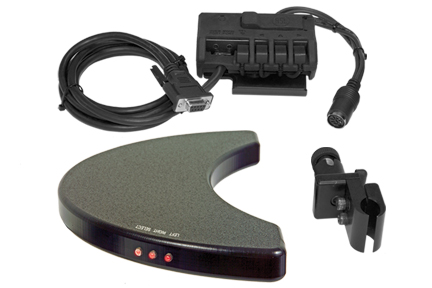

The ASL 107 Two Switch Fiber Optic Array consists of two fiber optic switches that allow the driver to operate a power wheelchair. When you activate the right switch the chair turns right.  When you activate the left switch the chair turns left. When you activate both left and right switches simultaneously the chair moves forward. Depending on the position of the 3-4 switch on the front of the ASL 151 Interface a third switch can control reset/mode change (in the 3 position) or reverse (in the 4 position). This system generally mounts inside an ASL 601 Full Lap Tray Driving Platform, ASL 603 Mini Tray, ASL 619 Eclipse Tray, Flex Tubing or Fiber Optic Bullets. These switches can be positioned anywhere inside the tray and once positioned a quick disconnect feature allows the tray to be removed with sensors intact. However, these sensors do not require the use of a tray and can be positioned at virtually any available switch site depending on the client’s movement ability. Typical users are individuals with extremely limited movement such as MD, MS, ALS and SMA.

Must Specify Wheelchair Electronics.
Mounting Options Not Included.
Requires ASL 151 Interface Box.

Printer Friendly Version | Ask ASL about Item | Tell A Friend




Mounting Options:

  • ASL 601 ASL 601 Full Lap Tray
  • Straight ASL 603 Mini Tray
  • Mini ASL 619 Eclipse Tray


Fiber Optic Adjustments:

  • Switches and Illumination Box Switches and Illumination Box
  • Adjustments and Settings Adjustments and Settings


All Options Require:

    • MK6i Interface ASL 151MK6i Interface
    • MK6i Interface Back ASL 151MK6i Interface Back

OR

  • PG, Curtis, R-Net, Q-Logic Interface ASL 151PG, Curtis, R-Net, Q-Logic Interface
  • PG Interface Back ASL 151PG Interface Back
