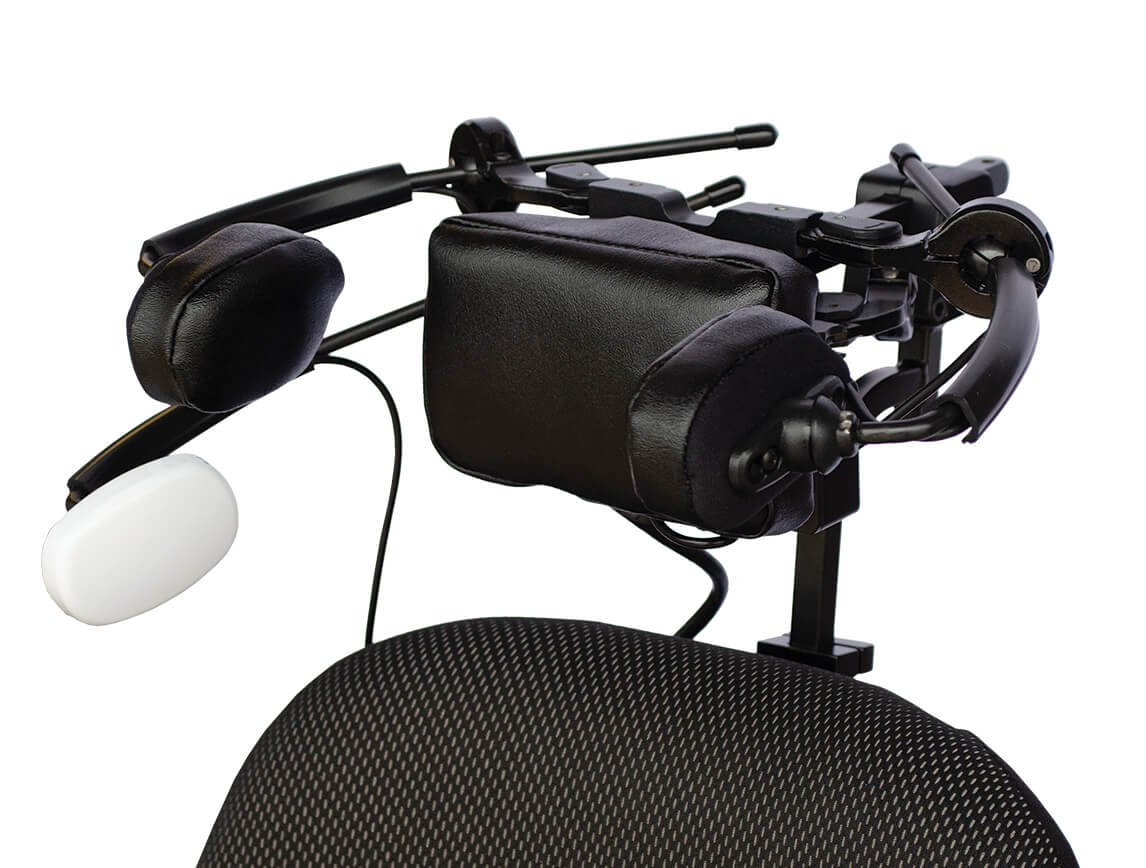

ASL 110 FUSION Proportional and Digital Head Array

Click red dots to view the features of the ASL 110 FUSION Proportional and Digital Head Array.

Click here to view the ASL 110 FUSION Proportional and Digital Head Array

image description

The FUSION, through programming, is customizable to meet the needs of a patient.

Adjustments can be made to change the force required to drive proportionally by direction, change the system from Digital to Proportional, change the direction of the pad to help a patient have better control, and turn the Auditory Features on and off to help a patient know what function they are controlling.

The FUSION’s hardware and software combination was designed with flexibility and adjustability to meet the most clinical needs.

The FUSION is compatible with all wheelchair electronic platforms.

With the addition of ASL accessories, a client can wirelessly connect to an AAC device, a mouse emulator and the Tecla E

Compact Features

  • The FUSION, through programming, is customizable to meet the needs of a patient.
  • Adjustments can be made to change the force required to drive proportionally by direction, change the system from Digital to Proportional, change the direction of the pad to help a patient have better control, and turn the Auditory Features on and off to help a patient know what function they are controlling.
  • The FUSION’s hardware and software combination was designed with flexibility and adjustability to meet the most clinical needs.
  • The FUSION is compatible with all wheelchair electronic platforms.
  • With the addition of ASL accessories, a client can wirelessly connect to an AAC device, a mouse emulator and the Tecla E
  • The adjustability options are designed to fit customizable needs and progressions of disabilities.
  • The FUSION Proportional and Digital Head Array is designed for persons with MS, ALS, CP, Arthrogryposis and high-level spinal cord injuries.
  • The ASL 110 FUSION Proportional and Digital Head Array is powered with ATOM Technology.

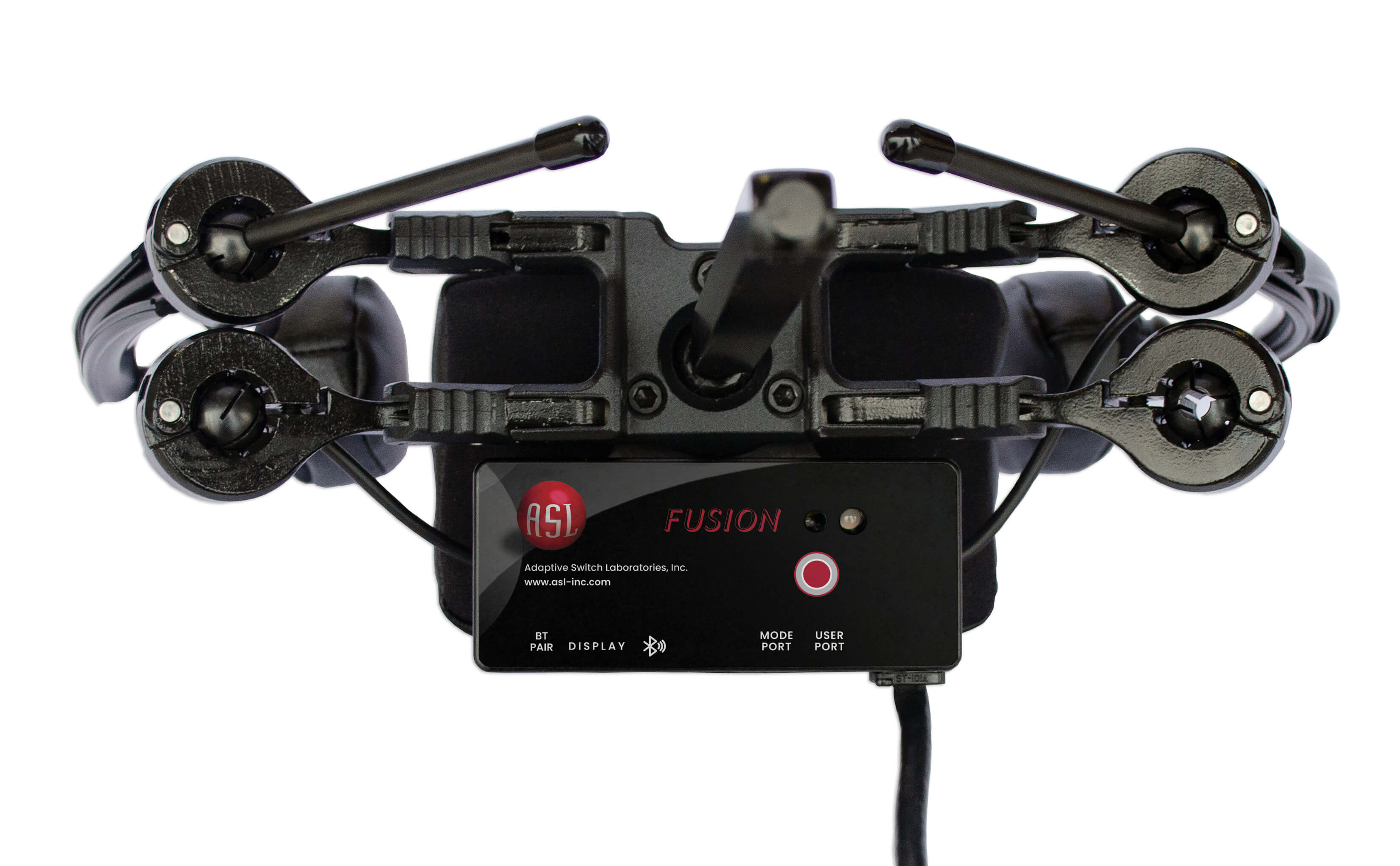

ASl 110 Fusion Back View of Box

Light Sensor: Automatically dims light when in a darker area

Power Light:

  • Green indicates - Driving Digital and Proportional
  • Amber indicates - Bluetooth Mode

On/Off Membrane Switch

Bluetooth Light:

  • Flashing Blue Light Indicates - Not Paired
  • Solid Light Indicates - Paired to ASL Accessory
  • No Light Indicates - Bluetooth is turned off in the Fusion
ASL 110 Fusion Interface Back View

Bluetooth Pairing Port

ASL 165 Display and Programmer Connection Port

Bluetooth Indicator Light

Back Pad Connection Port

Mode Port

User Port

ASL 110 Fusion Top Down Ports View

When a switch is plugged into the User Port of the FUSION interface a momentary activation of the switch will activate the highlighted top selection.

When the patient holds the switch to the adjusted time, the system will move to the next line item turned on in the FUSION display. An Auditory tone will be heard 1 beep for On/Off, 2 beeps for Bluetooth, 3 beeps for Function Next, and 4 beeps for Profile Next.

ASL 165 Fusion Display Programmer

ASL 165 FUSION Display and Programmer

The ASL 165 FUSION Programmer and Display has multiple functions. It can be used to personalize the FUSION to the specific patients’ needs and it can be used as a display, so the patient will know what they are controlling, such as:
Bluetooth, Next Function, Next Profile, and On/Off of the Head Array.
