ASL 102 UNO Single Switch Scanner with Bluetooth

Click red dots to view the features of the ASL 110 FUSION Proportional and Digital Head Array.

Click here to view the ASL 102 UNO Single Switch Scanner with Bluetooth

image description

Designed so that a person can control multiple things with just one single switch.

The UNO can control power wheelchair movement, seat functions, phones, tablets and communication devices.

Display scans in a frequency of use pattern.

Attendant Control allows for patient assistance without changing drive settings.

With the addition of ASL accessories, a client can wirelessly connect through the Tecla E or scan on a communication device when an ASL 802/4 is added.

Compact Features

  • The UNO is designed for persons with MS, ALS, SMA, Locked-In Syndrome, High Level Spinal Cord Injuries, or anyone who has only a single constant switch site.
  • The 102 UNO Single Switch Scanner is powered with ATOM Technology.
  • Designed so that a person can control multiple things with just one single¬†switch.
  • The UNO can control power wheelchair movement, seat functions, phones, tablets and communication devices.
  • Display scans in a frequency of use pattern.
  • Attendant Control allow patient assistance without changing drive settings.
  • With the addition of ASL accessories, a client can wirelessly connect through the Tecla E or scan on a communication device when an ASL 802/4 is added.

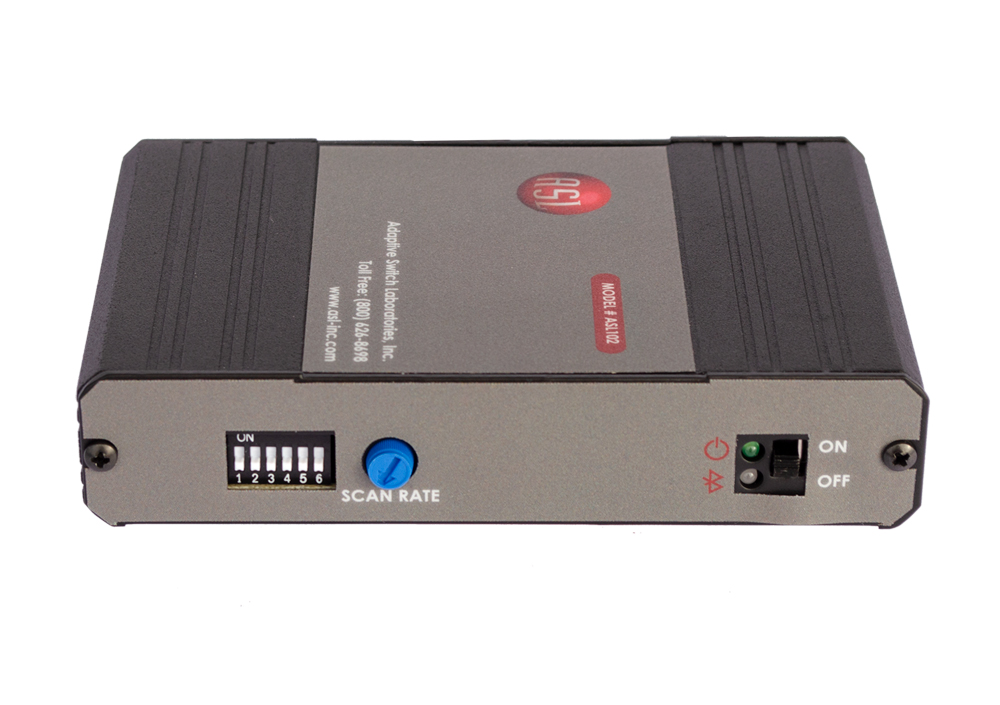

ASL-102-Scanner-Face-Only_2075

Program settings

Timer Dial

Power On / Off Light

Bluetooth Indicator

On / Off Switch

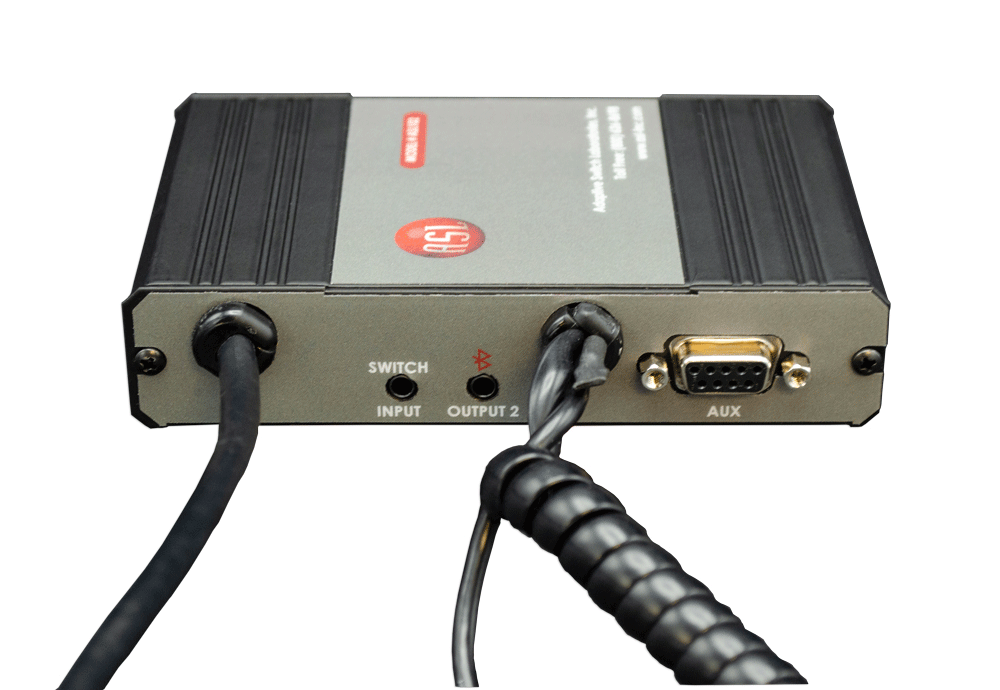

ASL-102-Scanner---Back_2079

Wheelchair Connection

Mono Input for Scanner Activation

Switch Input for Bluetooth Signal Output

Display and Attendant Control

9 Pin Output Connection

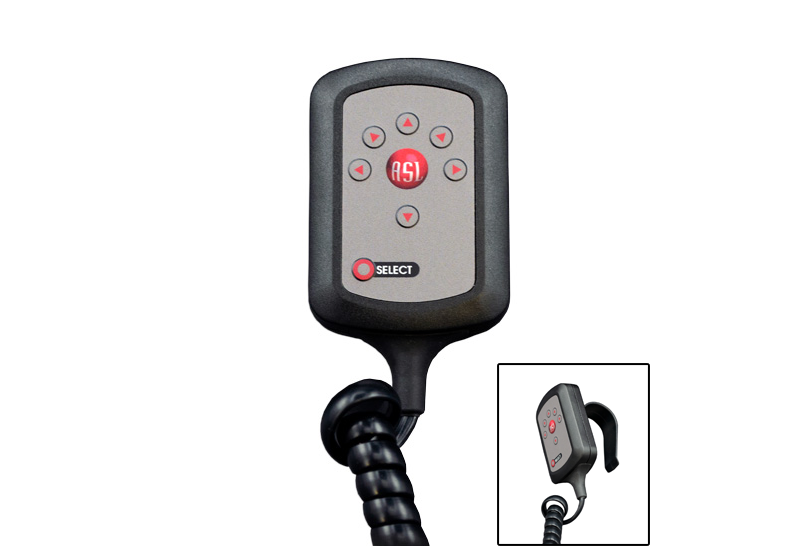

ASL-102-UNO-image-01

Attendant Control allows for patient assistance without changing drive settings

The Attendant Control has a clip on the back that can be attached to a push handle for easy access.

The flexible cord will allow the Attendant to stand beside the chair and move around freely

102-Scanner-Display2037

The Display scans in a frequency of use pattern.

The blue light is the indication of the direction of function that will be activated if the switch is activated.

There is a brightness sensor on the display when the system is in darker areas.

ASL-102-Scanner-Face-Only_2075
ASL-102-Scanner---Back_2079
ASL-102-UNO-image-01
102-Scanner-Display2037
