ASL 104 ATOM ELECTRONIC HEAD ARRAY

Click red dots to view the features of the ASL 104 Atom Electronic Head Array.

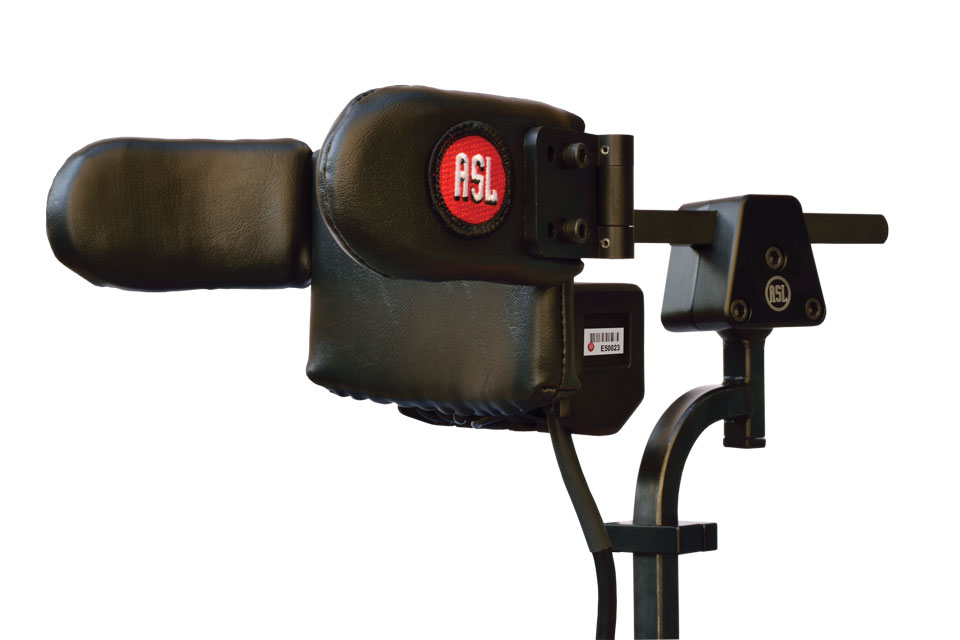

Click here to view the 104 Atom Electronic Head Array

image description

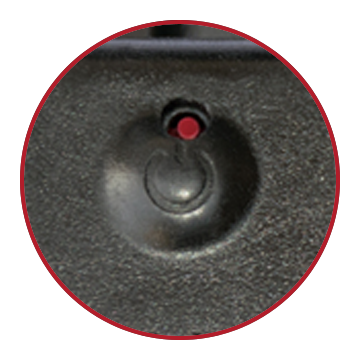

On/Off Switch on ATOM Head Array and Switch Port so the user can turn on/off themselves.

image description

Protective cover to aide in water resistance and protection for switch connections.

image description

Interface on the back of the ATOM Head Array can work with MK6, RNet, and Curtis platforms.

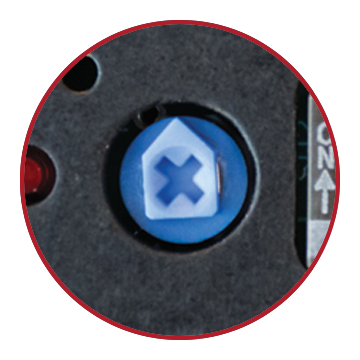

Adjustable Switch Timer to modify the amount of time to select user mode and drive modes.

image description

Compact Features

  • The interface is combined within the ATOM Electronic Head Array for ease of access to the switch ports.
  • The switch settings and adjustments allow simplicity in how the ATOM Electronic Head Array functions.
  • The directional LED indicators help a clinician/provider see when a client is accessing a switch.
  • The adjustable switch timer helps a client to easily access all the other wheelchair functions.
  • The important on/off switch is located for accessibility right on the back of the ATOM Electronic Head Array and can be accessed by the client with an additional switch.
  • With the activation of a switch the ATOM Electronic Head Array can be used as a wireless switch interface for computer access, AAC devices or the ASL 545 Tecla Shield.
  • The connection to the digital port has a red or green indicator light so the client can see if they are in drive mode, user mode, or powered off.
image description

Power Light

On/Off Attendant

Protective Cover

image description

Directional LED Indicators

Adjustable Switch Timer for Mode and User Port

  • Switch 1: Reverse/Rest
  • Switch 2: Future Use
  • Switch 3: Mode Switch Function
  • Switch 4: Code Settings
  • Switch 5: Code Settings
  • Switch 6: Audible Indicator
image description

User Switch Port

Reset Mode Change Port

Reverse Mode Change Port (Powered)

Left

Forward

Right

image description

Serial Number Window

Magnetic Cover

Protective Cable Guides
